4.3 inch digital display panels with capacitive touch
Product Introduction
**Introducing the RXL043022-A: A cutting-edge TFT LCD digital display panel**
In the ever-evolving world of technology, the demand for high-quality digital display panels continues to grow. Ruixiang proudly introduces the RXL043022-A, an advanced 4.3-inch TFT LCD panel designed to meet the diverse needs of various applications. With its superior specifications and rugged design, this digital display panel will redefine your visual experience.

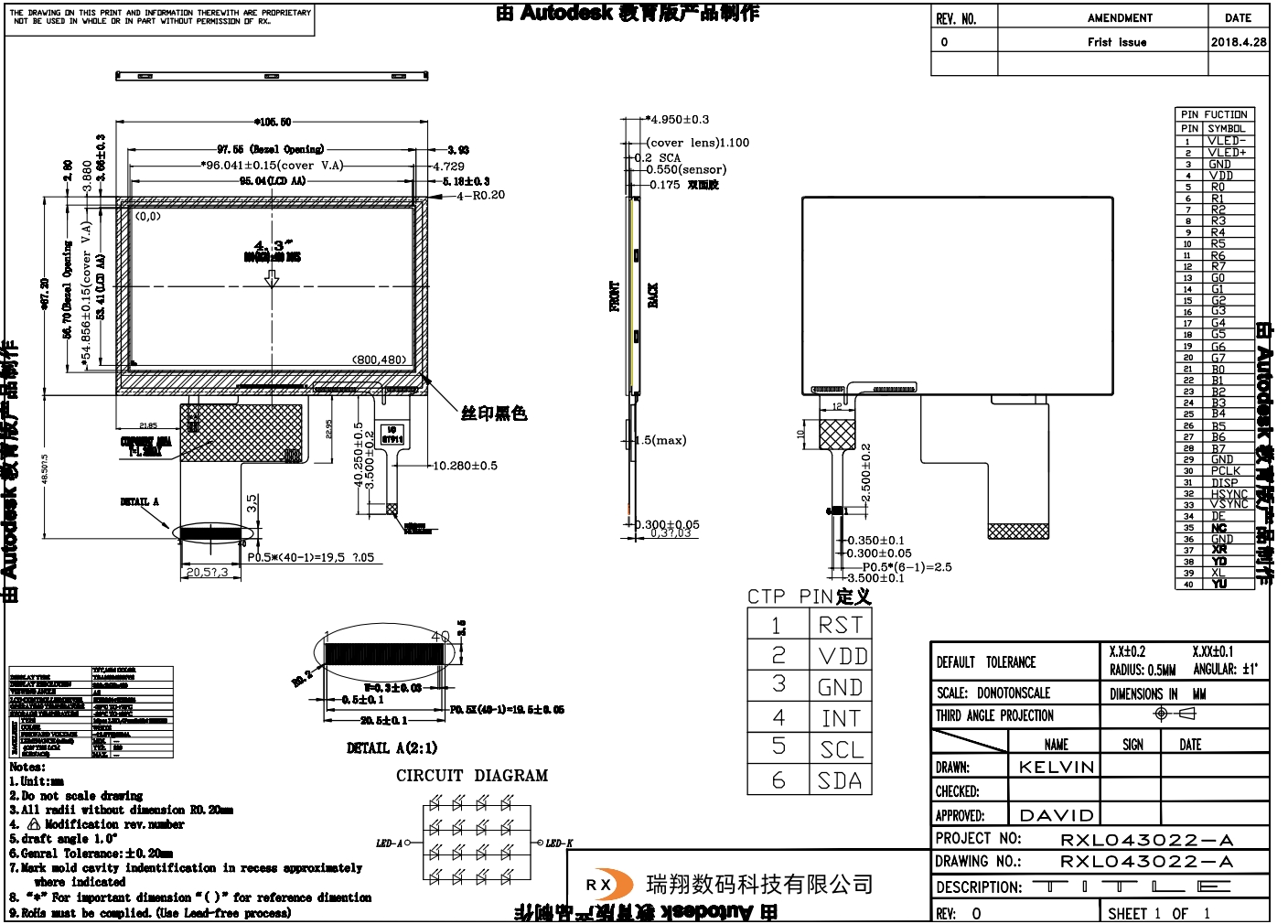

The RXL043022-A is equipped with a 4.3-inch capacitive touch display, providing users with an intuitive and responsive interactive experience. With an overall size of 105.5 mm x 67.2 mm x 4.95 mm, the LCD display is compact yet powerful. With a resolution of up to 800 x 480 pixels, this TFT LCD panel delivers vivid colors and sharp images, ensuring that your content is presented in the best light. The 300 nit brightness improves visibility, making it suitable for all lighting conditions, whether indoors or outdoors.
At Ruixiang, we understand that every project is unique, and our display designers are committed to tailoring solutions to your specific needs. Our team will carefully evaluate all parameters of your project, including power budget, operating temperature, display life (half-life), size constraints, tool (NRE) budget, and prototype and mass production target dates. This comprehensive approach ensures that the TFT LCD display we deliver not only meets your expectations, but even exceeds your expectations.
Our expertise goes far beyond standard products; whether you need a TFT LCD display, character LCD display, graphic LCD display, color LCD display, or a completely custom LCD display solution, Ruixiang can help you. We pride ourselves on providing high-quality digital display panels that meet the needs of a wide range of industries, including automotive, medical, industrial, and consumer electronics.
The RXL043022-A exemplifies our commitment to quality and innovation in digital display panels. Its capacitive touch technology enables seamless interaction, perfect for applications that require user engagement. The RGB interface ensures compatibility with a wide range of systems, making it easy to integrate into your existing projects.
In addition to technical specifications, the RXL043022-A is also designed with durability in mind. Our TFT LCD panels are rigorously tested to ensure they can withstand the demands of everyday use. Whether you are developing a new product or upgrading an existing one, you can count on our digital display panels to provide reliable performance over the long term.
As you explore the possibilities of integrating the RXL043022-A into your project, remember that Ruixiang is committed to providing excellent customer service and support. Our team is always ready to answer your questions and guide you through the selection process to ensure that you find the digital display panel that best meets your needs.
In short, the RXL043022-A is more than just a TFT LCD panel, it is the gateway to enhanced visual communication and user interaction. With its advanced features and Ruixiang's pursuit of excellence, this digital display panel will definitely take your project to new heights. Contact us today to learn more about how the RXL043022-A can revolutionize your display solutions and help you achieve your project goals.
Our Services
Ruixiang(RX) provides customers with flexible customization services: customized screen FPC, screen IC, screen backlight, touch screen cover plate, sensor, touch screen FPC. For more details, please consult us, we will provide you with free project evaluation and project approval, and have a professional R & D personnel one-to-one project docking, welcome the demand of customers to find us!
E-mail: info@rxtplcd.com
Mobile/Whatsapp/WeChat: +86 18927346997
Website: https://www.rxtplcd.com
Product Specification
Ruixiang touch display technology Co., Ltd.
LCD Display Module
OEM/ODM customization is supported.
The following are not all sizes. If the size you need is not in the list, please tell us the size you need.
| Size (inch) |
Part No. | Resolution | LCD OD | View Area (mm) |
Interface | IC | FPC | Remark | |
| 2.4 | RXL024074-A | 240*320 | 42.72*58.9*2.2 | 36.72*48.96 | MCU(P) | ILI9341V | 40PIN | RTP/CTP | Contact US |
| RXL024091-A | 240*320 | 42.72*60.26*2.6 | 36.72*48.96 | MCU/SPI/RGB | ST7789V | 45PIN | RTP/CTP | ||
| RXL024102-A | 240*320 | 42.72*60.26*3.6 | 36.72*48.96 | MCU | ST7789V | 45PIN | RTP/CTP | ||
| RXL024102-A | 240*320 | 42.92*60.26*3.78 | 36.72*48.96 | MCU/SPI/RGB | ST7789V | 45PIN | IPS | ||
| 2.8 | RXL028052-A | 240*320 | 50.2*69.7*2.6 | 43.2*57.6 | MCU/SPI/RGB | ST7789V | 50PIN | RTP/CTP | |
| RXL028075-A | 240*320 | 50.5*69.7*2.6 | 43.2*57.6 | MCU/SPI/RGB | ST7789V | 50PIN | IPS | ||
| RXL028092-A | 240*320 | 50*69.2*2.45 | 43.2*57.6 | MCU(P) | ILI9341V | 37PIN | RTP/CTP | ||
| 3 | RXL030053-A | 240*400 | 45.4*77*2.6 | 39.24*65.4 | MCU/SPI/RGB | ILI9327 | 45PIN | IPS | Contact US |
| RXL030076-A | 240*400 | 45.4*77*2.6 | 38.88*64.8 | MCU/SPI/RGB | ILI9327 | 45PIN | RTP/CTP | ||
| 3.2 | RXL032054-A | 240*320 | 55.04*77.2*2.5 | 48.6*64.8 | MCU(P)/RGB | ILI9341 | 40PIN | RTP/CTP | |
| RXL032077-A | 240*320 | 55*77.2*2.6 | 48.6*64.8 | MCU/SPI/RGB | ST7789V | 50PIN | RTP/CTP | ||
| 3.5 | RXL035055-A | 320*240 | 76.9*63.9*3.25 | 70.08*52.56 | RGB | HX8238A | 54PIN | RTP/CTP | |
| RXL035093-A | 320*480 | 54.66*82.94*2.3 | 48.96*73.44 | MCU(P)/RGB | ILI9488 | 40PIN | RTP/CTP | ||
| RXL035103-A | 320*240 | 76.9*63.9*4.5 | 70.08*52.56 | RGB | HX8238A | 54PIN | RTP/CTP | ||
| RXL035109-A | 320*240 | 76.9*63.9*4.55 | 70.08*52.56 | RGB | HX8238A | 54PIN | IPS | ||
| RXL035113-A | 320*480 | 54.58*83.57*2.1 | 48.96*73.44 | MCU/SPI/RGB | ILI9488 | 50PIN | IPS | ||
| RXL035036-A | 320*480 | 55.5*84.9*2.5 | 48.96*73.44 | MIPI | ILI9488 | 20PIN | IPS | ||
| 4 | RXL040056-A | 480*800 | 79.38*76.43*2.8 | 70.176*71.856 | SPI/RGB | ST7701S | 50PIN | IPS | Contact US |
| RXL040078-A | 480*800 | 57.14*96.85*2 | 51.84*86.4 | MIPI | OTM8019A | 20PIN | IPS | ||
| RXL040094-A | 480*800 | 58.26*98.1*2.55 | 51.84*86.4 | SPI+RGB | ILI9806E | 50PIN | IPS | ||
| RXL040026-A | 480*800 | 57.15*96.85*2.3 | 51.84*86.4 | RGB | ILI9806 | 30PIN | IPS | ||
| RXL040104-A | 480*800 | 57.14*96.85*2 | 51.84*86.4 | MCU(P)/RGB | ILI9806G | 50PIN | RTP/CTP | ||
| 4.3 | RXL043057-A | 480*272 | 105.4*67.15*2.86 | 95.04*53.86 | 16/18/24RGB | ST7282 | 40PIN | RTP/CTP | |
| RXL043079-A | 480*800 | 62.5*105.55*2.5 | 56.16*93.6 | 16/18/24RGB | ILI9806E | 45PIN | IPS | ||
| RXL043095-A | 480*272 | 105.4*67.15*2.85 | 95.04*53.86 | 8/24RGB | SC7283 | 40PIN | Wide temp/IPS | ||
| RXL043105-A | 480*800 | 62.5*105.55*2.5 | 56.16*93.6 | MIPI | ILI9806E | 20PIN | IPS | ||
| RXL043119-A | 480*272 | 53.856*95.04 | 53.856*95.04 | RGB | HX8257-A00 | 40PIN | RTP/CTP | ||
| RXL043002-A | 480*272 | 53.856*95.04 | 53.856*95.04 | RGB | HX8257-A00 | 40PIN | RTP/CTP | ||
| 4.5 | RXL045058-A | 480*854 | 61.54*110.1*2.55 | 55.44*98.64 | SPI+RGB | ILI9806E | 45PIN | RTP/CTP | Contact US |
| RXL045080-A | 480*854 | 61.54*110.1*2.55 | 55.44*98.64 | MIPI | ILI9806E | 20PIN | IPS | ||
| 5 | RXL050059-A | 480*272 | 120.8*75.9*4.2 | 110.88*62.83 | RGB | HX8257-A00 | 40PIN | RTP/CTP | |
| RXL050081-A | 800*480 | 120.7*75.8*4.5 | 108*64.8 | RGB | ILI6122+ILI5960 | 40PIN | RTP/CTP | ||
| RXL050063-A | 800*480 | 120.7*75.8*4.3 | 108*64.8 | RGB | ILI6122+ILI5960 | 40PIN | RTP/CTP | ||
| RXL050020-A | 800*480 | 120.7*75.8*4.3.1 | 108*64.8 | RGB | ILI6122 | 40PIN | RTP/CTP | ||
| RXL050096-A | 800*480 | 120.9*78.1*2.95 | 108*64.8 | 16/18/24RGB | ST7262 | 40PIN | Wide temp/IPS | ||
| RXL050106-A | 720*1280 | 67.56*122.35*2.6 | 62.1*110.4 | MIPI | ILI9881C | 30PIN | IPS HD | ||
| RXL050025-A | 720*1280 | 65.4*119.3*1.64 | 62.1*110.4 | MIPI | / | 25PIN | |||
| RXL050110-A | 1080*1920 | 64.3*118.3*1.49 | 61.88*110.2 | MIPI | NT35596 | 39PIN | IPS HD | ||
| 5.5 | RXL055060-A | 720*1280 | 71.66*129.99*1.61 | 68.04*120.96 | MIPI | OTM1283A | 25PIN | IPS 1080P | |
| RXL055082-A | 720*1280 | 74.28*133.21*2.6 | 68.04*120.96 | 4 Lane MIPI | ILI9881C | 30PIN | RTP/CTP | Contact US |
|
| RXL055097-A | 1080*1920 | 74.28*133.21*2.6 | 68.04*120.96 | 4 Lane MIPI | NT35532 | 25PIN | IPS 1080P | ||
| 5.6 | RXL056061-A | 640*480 | 126.5*100*4.5 | 112.9*84.67 | 16/18RGB | / | 40PIN | RTP/CTP | |
| 7 | RXL070018-A | 800*480 | 165*100*3.5 | 154.08*85.92 | RGB | ILI6122+ILI5960 | 50PIN | RTP/CTP | |
| RXL070083-A | 800*480 | 165*100*5.7 | 154.08*85.92 | MIPI | ILI6122+ILI5960 | 50PIN | RTP/CTP | ||
| RXL070098-A | 800*480 | 165.4*104.59*5.8 | 152.4*91.44 | 16/18/24RGB | / | 40PIN | Wide temp/IPS | ||
| RXL070107-A | 1024*600 | 165*100*6 | 154.21*85.92 | RGB | NT52003+NT51008 | 50PIN | RTP/CTP | ||
| RXL070111-A | 1024*600 | 165*100*3.5 | 154.21*85.92 | MIPI | EK79007AD+ EK73215BCGA |
50PIN | RTP/CTP | ||
| RXL070114-A | 1024*600 | 164.9*100*3.5 | 154.21*85.92 | LVDS | 79001/EK73215BC | 30PIN | MVA | ||
| RXL070116-A | 1024*600 | 165*100*5.8 | 154.21*85.92 | 4 Lane MIPI | / | 30PIN | IPS | ||
| RXL070117-A | 800*1280 | 103.46*160.78*2.17 | 94.2*150.72 | MIPI | NT35521 | 40PIN | IPS | ||
| RXL070084-A | 800*1280 | 97.35*162.03*2.3 | 94.2*150.7 | MIPI | / | 40PIN | IPS | Contact US |
|
| RXL070029-A | 1200*1920 | 98.75*160.85 | 94.5*151.2 | MIPI | / | 40PIN | IPS | ||
| 8 | RXL080064-A | 800*600 | 183*141*5.6 | 162*121.5 | 24RGB | / | 50PIN | RTP/CTP | |
| RXL080050-A | 800*1280 | 114.6*184.1*2.5 | 107.64*172.22 | MIPI | / | 31PIN | IPS | ||
| RXL080120-A | 1024*768 | 136*174*2.5 | 162*121.5 | MIPI | 50PIN | RTP/CTP | |||
| RXL080049-A | 1024*768 | 183*141*6.3 | 162*121.54 | LVDS | 50PIN | RTP/CTP | |||
| 9 | RXL090065-A | 800*480 | 211.1*126.5*3.5 | 198*111.7 | 24RGB | / | 50PIN | RTP/CTP | |
| RXL090085-A | 1024*600 | 210.7*126.5*5 | 196.61*114.15 | RGB | / | 50PIN | RTP/CTP | ||
| 10.1 | RXL101086-A | 800*1280 | 143*228.6*2.8 | 135.36*216.57 | MIPI | / | 40PIN | IPS | |
| RXL101100-A | 1200*1920 | 143*228.7*2.2 | 135.36*216.58 | MIPI | / | 40PIN | IPS | ||
| RXL101073-A | 1080*1920 | 142.8*228.2 | 135.36*216.58 | MIPI | / | 40PIN | IPS | ||
| RXL101108-A | 1024*600 | 235*143*5.2 | 222.72*125.28 | LVDS | / | 40PIN | RTP/CTP | Contact US |
|
| RXL101112-A | 1024*600 | 235*143*5 | 222.72*125.28 | RGB | / | 30PIN | IPS | ||
| RXL101066-A | 1280*800 | 229.46*149.1*2.5 | 216.96*135.6 | LVDS | / | 40PIN | IPS | ||
| RXL101121-A | 1280*800 | 229.46*150.2*4.5 | 216.96*135.6 | LVDS | 40PIN | RTP/CTP | |||
| 10.4 | RXL104067-A | 800*600 | 228.4*175.4*5.9 | 211.2*158.4 | 24RGB | / | 60PIN | RTP/CTP | |
| 12.1 | RXL121068-A | 1024*768 | 279*209*9 | 245.76*184.32 | LVDS | / | 20PIN | RTP/CTP | |
| RXL121122-A | 1024*768 | 260.5*203.5*10 | 248*187 | LVDS | / | 20PIN | RTP/CTP | ||
| RXL121087-A | 1024*768 | 260.5*204*8.4 | 245.76*184.3 | LVDS | / | 30PIN | IPS | ||
| 13.3 | RXL133069-A | 1920*1080 | 306.3*177.7*5.4 | 293.47*165.07 | EDP | / | 30PIN | IPS | |
| RXL133088-A | 1920*1080 | 305.35*187.82*2.7 | 293.76*165.24 | EDP | / | 30PIN | IPS | ||
| RXL133101-A | 1920*1080 | 305.2*178.1*2.6 | 293.76*165.24 | EDP | / | 30PIN | IPS | ||
| 15.6 | RXL156070-A | 1920*1080 | 363.8*215.9*8.8 | 344.16*193.59 | EDP | / | 30PIN | 1000NITS | Contact US |
| RXL156089-A | 1920*1080 | 359.5*223.8*3.2 | 344.16*193.59 | EDP | / | 30PIN | 220nits IPS | ||
| 19 | RXL190071-A | 1280*1024 | 396*324*11.2 | 376.32*301.06 | LVDS | / | 30PIN | CTP | |
| 21.5 | RXL215072-A | 1920*1080 | 495.6*292.2*10.6 | 476.64*268.11 | LVDS | / | 30PIN | CTP | |
| RXL215090-A | 1920*1080 | 489.3*287*12.8 | 476.06*267.8 | LVDS | / | 30PIN | IPS |
