7 “LCD digital display panels with capacitive touch panel can be customized
Product Introduction

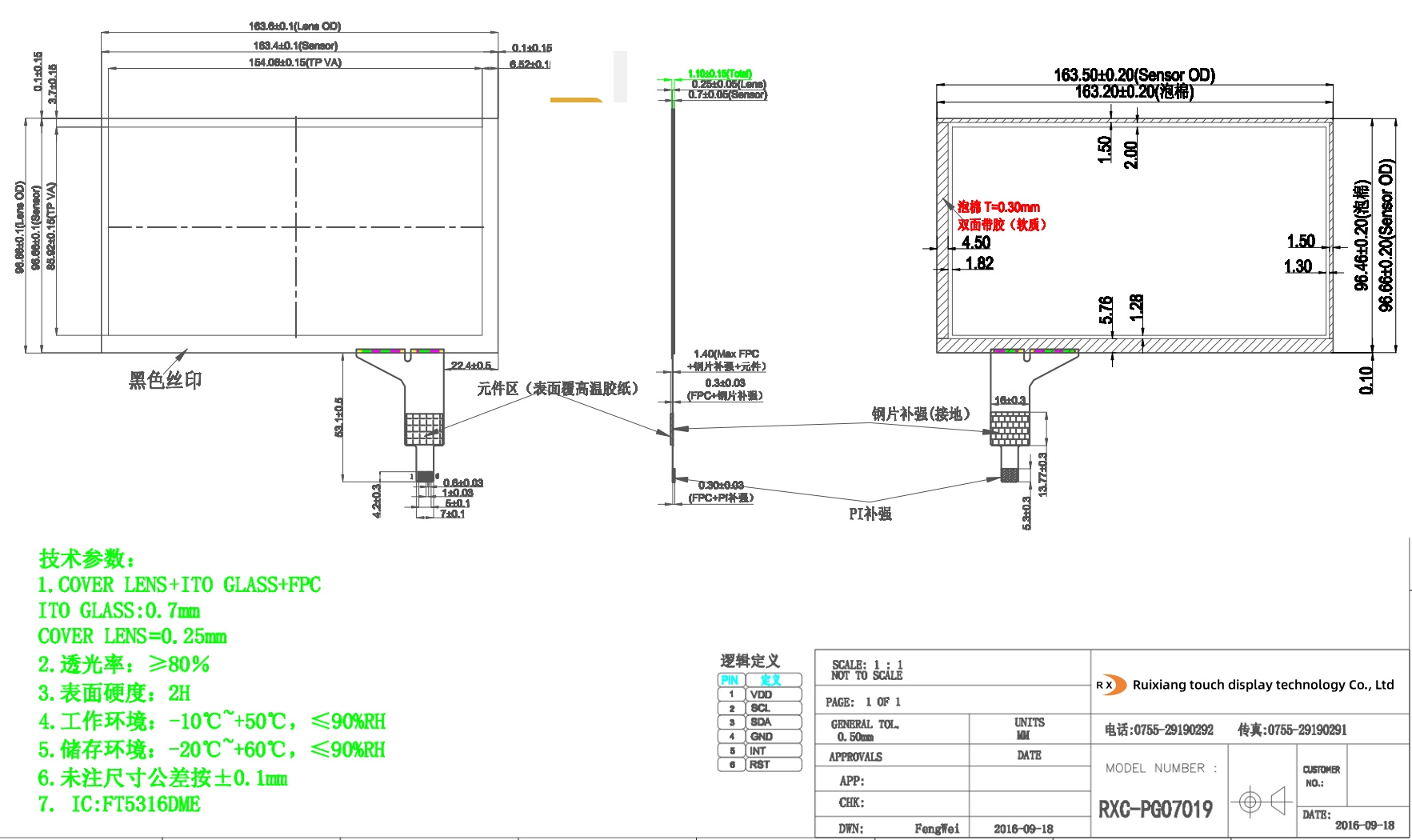

**Introducing the RXC-PG07019: The Ultimate 7-inch TFT LCD Digital Display Panel**
In an ever-evolving technological world, the need for high-quality digital display panels has never been greater. Ruixiang is pleased to introduce the RXC-PG07019, an advanced 7-inch TFT LCD panel that redefines the standards for visual performance and usability. With its advanced features and rugged design, this digital display panel is designed to meet the diverse needs of a wide range of industries, including medical, military, and industrial applications.
The RXC-PG07019 features a slim LCD display of 165mm x 100mm x 4.6mm, making it ideal for compact designs without compromising on screen space. With a resolution of 800 x 480 pixels, this TFT LCD panel delivers crisp, clear images, ensuring every detail is captured accurately. The RGB interface enhances color reproduction for a rich visual experience, which is essential for applications that require high fidelity.
A highlight of the RXC-PG07019 is its brightness of up to 300 nits. This ensures that the display remains clearly visible even in challenging lighting conditions, making it ideal for outdoor use or environments with large variations in light levels. Capacitive touch functionality further enhances the user interaction experience, enabling intuitive control and seamless navigation between applications. The perfect combination of touch sensitivity and visual clarity makes the RXC-PG07019 the first choice for digital display panels.
At Ruixiang, we understand that choosing the right LCD solution is critical to the success of your design. Our commitment to quality and innovation is reflected in our range of TFT LCD panels, designed to maximize performance and usability. The RXC-PG07019 is no exception; it embodies the latest advancements in TFT technology, ensuring your end product stands out in terms of quality and functionality.
TFTs (Thin Film Transistor LCDs) are widely recognized as the most innovative product in the LCD industry. They offer enhanced display capabilities, including superior contrast and brightness, which are critical for applications requiring high visibility. The RXC-PG07019 fully demonstrates these characteristics, making it an ideal choice for projects that require a reliable, high-performance digital display panel.
Whether you are developing medical devices that require precise visual feedback, military applications that value ruggedness and clarity, or industrial solutions that need to operate in a variety of conditions, the RXC-PG07019 can meet your specific needs. Its versatility and high performance make it a valuable asset in any design project.
In short, the RXC-PG07019 is more than just a digital display panel; it reflects Ruixiang's commitment to providing cutting-edge TFT LCD panels to enhance the quality and usability of your products. With its advanced features, rugged design, and superior performance, the RXC-PG07019 is an ideal choice for any application that requires the best display technology. Trust Ruixiang to provide LCD solutions that meet your design needs and experience the extraordinary experience brought by our TFT LCD panels.
Our Services
Ruixiang(RX) provides customers with flexible customization services: customized screen FPC, screen IC, screen backlight, touch screen cover plate, sensor, touch screen FPC. For more details, please consult us, we will provide you with free project evaluation and project approval, and have a professional R & D personnel one-to-one project docking, welcome the demand of customers to find us!
E-mail: info@rxtplcd.com
Mobile/Whatsapp/WeChat: +86 18927346997
Website: https://www.rxtplcd.com
Product Specification
Ruixiang touch display technology Co., Ltd.
LCD Display Module
OEM/ODM customization is supported.
The following are not all sizes. If the size you need is not in the list, please tell us the size you need.
| Size (inch) |
Part No. | Resolution | LCD OD | View Area (mm) |
Interface | IC | FPC | Remark | |
| 2.4 | RXL024074-A | 240*320 | 42.72*58.9*2.2 | 36.72*48.96 | MCU(P) | ILI9341V | 40PIN | RTP/CTP | Contact US |
| RXL024091-A | 240*320 | 42.72*60.26*2.6 | 36.72*48.96 | MCU/SPI/RGB | ST7789V | 45PIN | RTP/CTP | ||
| RXL024102-A | 240*320 | 42.72*60.26*3.6 | 36.72*48.96 | MCU | ST7789V | 45PIN | RTP/CTP | ||
| RXL024102-A | 240*320 | 42.92*60.26*3.78 | 36.72*48.96 | MCU/SPI/RGB | ST7789V | 45PIN | IPS | ||
| 2.8 | RXL028052-A | 240*320 | 50.2*69.7*2.6 | 43.2*57.6 | MCU/SPI/RGB | ST7789V | 50PIN | RTP/CTP | |
| RXL028075-A | 240*320 | 50.5*69.7*2.6 | 43.2*57.6 | MCU/SPI/RGB | ST7789V | 50PIN | IPS | ||
| RXL028092-A | 240*320 | 50*69.2*2.45 | 43.2*57.6 | MCU(P) | ILI9341V | 37PIN | RTP/CTP | ||
| 3 | RXL030053-A | 240*400 | 45.4*77*2.6 | 39.24*65.4 | MCU/SPI/RGB | ILI9327 | 45PIN | IPS | Contact US |
| RXL030076-A | 240*400 | 45.4*77*2.6 | 38.88*64.8 | MCU/SPI/RGB | ILI9327 | 45PIN | RTP/CTP | ||
| 3.2 | RXL032054-A | 240*320 | 55.04*77.2*2.5 | 48.6*64.8 | MCU(P)/RGB | ILI9341 | 40PIN | RTP/CTP | |
| RXL032077-A | 240*320 | 55*77.2*2.6 | 48.6*64.8 | MCU/SPI/RGB | ST7789V | 50PIN | RTP/CTP | ||
| 3.5 | RXL035055-A | 320*240 | 76.9*63.9*3.25 | 70.08*52.56 | RGB | HX8238A | 54PIN | RTP/CTP | |
| RXL035093-A | 320*480 | 54.66*82.94*2.3 | 48.96*73.44 | MCU(P)/RGB | ILI9488 | 40PIN | RTP/CTP | ||
| RXL035103-A | 320*240 | 76.9*63.9*4.5 | 70.08*52.56 | RGB | HX8238A | 54PIN | RTP/CTP | ||
| RXL035109-A | 320*240 | 76.9*63.9*4.55 | 70.08*52.56 | RGB | HX8238A | 54PIN | IPS | ||
| RXL035113-A | 320*480 | 54.58*83.57*2.1 | 48.96*73.44 | MCU/SPI/RGB | ILI9488 | 50PIN | IPS | ||
| RXL035036-A | 320*480 | 55.5*84.9*2.5 | 48.96*73.44 | MIPI | ILI9488 | 20PIN | IPS | ||
| 4 | RXL040056-A | 480*800 | 79.38*76.43*2.8 | 70.176*71.856 | SPI/RGB | ST7701S | 50PIN | IPS | Contact US |
| RXL040078-A | 480*800 | 57.14*96.85*2 | 51.84*86.4 | MIPI | OTM8019A | 20PIN | IPS | ||
| RXL040094-A | 480*800 | 58.26*98.1*2.55 | 51.84*86.4 | SPI+RGB | ILI9806E | 50PIN | IPS | ||
| RXL040026-A | 480*800 | 57.15*96.85*2.3 | 51.84*86.4 | RGB | ILI9806 | 30PIN | IPS | ||
| RXL040104-A | 480*800 | 57.14*96.85*2 | 51.84*86.4 | MCU(P)/RGB | ILI9806G | 50PIN | RTP/CTP | ||
| 4.3 | RXL043057-A | 480*272 | 105.4*67.15*2.86 | 95.04*53.86 | 16/18/24RGB | ST7282 | 40PIN | RTP/CTP | |
| RXL043079-A | 480*800 | 62.5*105.55*2.5 | 56.16*93.6 | 16/18/24RGB | ILI9806E | 45PIN | IPS | ||
| RXL043095-A | 480*272 | 105.4*67.15*2.85 | 95.04*53.86 | 8/24RGB | SC7283 | 40PIN | Wide temp/IPS | ||
| RXL043105-A | 480*800 | 62.5*105.55*2.5 | 56.16*93.6 | MIPI | ILI9806E | 20PIN | IPS | ||
| RXL043119-A | 480*272 | 53.856*95.04 | 53.856*95.04 | RGB | HX8257-A00 | 40PIN | RTP/CTP | ||
| RXL043002-A | 480*272 | 53.856*95.04 | 53.856*95.04 | RGB | HX8257-A00 | 40PIN | RTP/CTP | ||
| 4.5 | RXL045058-A | 480*854 | 61.54*110.1*2.55 | 55.44*98.64 | SPI+RGB | ILI9806E | 45PIN | RTP/CTP | Contact US |
| RXL045080-A | 480*854 | 61.54*110.1*2.55 | 55.44*98.64 | MIPI | ILI9806E | 20PIN | IPS | ||
| 5 | RXL050059-A | 480*272 | 120.8*75.9*4.2 | 110.88*62.83 | RGB | HX8257-A00 | 40PIN | RTP/CTP | |
| RXL050081-A | 800*480 | 120.7*75.8*4.5 | 108*64.8 | RGB | ILI6122+ILI5960 | 40PIN | RTP/CTP | ||
| RXL050063-A | 800*480 | 120.7*75.8*4.3 | 108*64.8 | RGB | ILI6122+ILI5960 | 40PIN | RTP/CTP | ||
| RXL050020-A | 800*480 | 120.7*75.8*4.3.1 | 108*64.8 | RGB | ILI6122 | 40PIN | RTP/CTP | ||
| RXL050096-A | 800*480 | 120.9*78.1*2.95 | 108*64.8 | 16/18/24RGB | ST7262 | 40PIN | Wide temp/IPS | ||
| RXL050106-A | 720*1280 | 67.56*122.35*2.6 | 62.1*110.4 | MIPI | ILI9881C | 30PIN | IPS HD | ||
| RXL050025-A | 720*1280 | 65.4*119.3*1.64 | 62.1*110.4 | MIPI | / | 25PIN | |||
| RXL050110-A | 1080*1920 | 64.3*118.3*1.49 | 61.88*110.2 | MIPI | NT35596 | 39PIN | IPS HD | ||
| 5.5 | RXL055060-A | 720*1280 | 71.66*129.99*1.61 | 68.04*120.96 | MIPI | OTM1283A | 25PIN | IPS 1080P | |
| RXL055082-A | 720*1280 | 74.28*133.21*2.6 | 68.04*120.96 | 4 Lane MIPI | ILI9881C | 30PIN | RTP/CTP | Contact US |
|
| RXL055097-A | 1080*1920 | 74.28*133.21*2.6 | 68.04*120.96 | 4 Lane MIPI | NT35532 | 25PIN | IPS 1080P | ||
| 5.6 | RXL056061-A | 640*480 | 126.5*100*4.5 | 112.9*84.67 | 16/18RGB | / | 40PIN | RTP/CTP | |
| 7 | RXL070018-A | 800*480 | 165*100*3.5 | 154.08*85.92 | RGB | ILI6122+ILI5960 | 50PIN | RTP/CTP | |
| RXL070083-A | 800*480 | 165*100*5.7 | 154.08*85.92 | MIPI | ILI6122+ILI5960 | 50PIN | RTP/CTP | ||
| RXL070098-A | 800*480 | 165.4*104.59*5.8 | 152.4*91.44 | 16/18/24RGB | / | 40PIN | Wide temp/IPS | ||
| RXL070107-A | 1024*600 | 165*100*6 | 154.21*85.92 | RGB | NT52003+NT51008 | 50PIN | RTP/CTP | ||
| RXL070111-A | 1024*600 | 165*100*3.5 | 154.21*85.92 | MIPI | EK79007AD+ EK73215BCGA |
50PIN | RTP/CTP | ||
| RXL070114-A | 1024*600 | 164.9*100*3.5 | 154.21*85.92 | LVDS | 79001/EK73215BC | 30PIN | MVA | ||
| RXL070116-A | 1024*600 | 165*100*5.8 | 154.21*85.92 | 4 Lane MIPI | / | 30PIN | IPS | ||
| RXL070117-A | 800*1280 | 103.46*160.78*2.17 | 94.2*150.72 | MIPI | NT35521 | 40PIN | IPS | ||
| RXL070084-A | 800*1280 | 97.35*162.03*2.3 | 94.2*150.7 | MIPI | / | 40PIN | IPS | Contact US |
|
| RXL070029-A | 1200*1920 | 98.75*160.85 | 94.5*151.2 | MIPI | / | 40PIN | IPS | ||
| 8 | RXL080064-A | 800*600 | 183*141*5.6 | 162*121.5 | 24RGB | / | 50PIN | RTP/CTP | |
| RXL080050-A | 800*1280 | 114.6*184.1*2.5 | 107.64*172.22 | MIPI | / | 31PIN | IPS | ||
| RXL080120-A | 1024*768 | 136*174*2.5 | 162*121.5 | MIPI | 50PIN | RTP/CTP | |||
| RXL080049-A | 1024*768 | 183*141*6.3 | 162*121.54 | LVDS | 50PIN | RTP/CTP | |||
| 9 | RXL090065-A | 800*480 | 211.1*126.5*3.5 | 198*111.7 | 24RGB | / | 50PIN | RTP/CTP | |
| RXL090085-A | 1024*600 | 210.7*126.5*5 | 196.61*114.15 | RGB | / | 50PIN | RTP/CTP | ||
| 10.1 | RXL101086-A | 800*1280 | 143*228.6*2.8 | 135.36*216.57 | MIPI | / | 40PIN | IPS | |
| RXL101100-A | 1200*1920 | 143*228.7*2.2 | 135.36*216.58 | MIPI | / | 40PIN | IPS | ||
| RXL101073-A | 1080*1920 | 142.8*228.2 | 135.36*216.58 | MIPI | / | 40PIN | IPS | ||
| RXL101108-A | 1024*600 | 235*143*5.2 | 222.72*125.28 | LVDS | / | 40PIN | RTP/CTP | Contact US |
|
| RXL101112-A | 1024*600 | 235*143*5 | 222.72*125.28 | RGB | / | 30PIN | IPS | ||
| RXL101066-A | 1280*800 | 229.46*149.1*2.5 | 216.96*135.6 | LVDS | / | 40PIN | IPS | ||
| RXL101121-A | 1280*800 | 229.46*150.2*4.5 | 216.96*135.6 | LVDS | 40PIN | RTP/CTP | |||
| 10.4 | RXL104067-A | 800*600 | 228.4*175.4*5.9 | 211.2*158.4 | 24RGB | / | 60PIN | RTP/CTP | |
| 12.1 | RXL121068-A | 1024*768 | 279*209*9 | 245.76*184.32 | LVDS | / | 20PIN | RTP/CTP | |
| RXL121122-A | 1024*768 | 260.5*203.5*10 | 248*187 | LVDS | / | 20PIN | RTP/CTP | ||
| RXL121087-A | 1024*768 | 260.5*204*8.4 | 245.76*184.3 | LVDS | / | 30PIN | IPS | ||
| 13.3 | RXL133069-A | 1920*1080 | 306.3*177.7*5.4 | 293.47*165.07 | EDP | / | 30PIN | IPS | |
| RXL133088-A | 1920*1080 | 305.35*187.82*2.7 | 293.76*165.24 | EDP | / | 30PIN | IPS | ||
| RXL133101-A | 1920*1080 | 305.2*178.1*2.6 | 293.76*165.24 | EDP | / | 30PIN | IPS | ||
| 15.6 | RXL156070-A | 1920*1080 | 363.8*215.9*8.8 | 344.16*193.59 | EDP | / | 30PIN | 1000NITS | Contact US |
| RXL156089-A | 1920*1080 | 359.5*223.8*3.2 | 344.16*193.59 | EDP | / | 30PIN | 220nits IPS | ||
| 19 | RXL190071-A | 1280*1024 | 396*324*11.2 | 376.32*301.06 | LVDS | / | 30PIN | CTP | |
| 21.5 | RXL215072-A | 1920*1080 | 495.6*292.2*10.6 | 476.64*268.11 | LVDS | / | 30PIN | CTP | |
| RXL215090-A | 1920*1080 | 489.3*287*12.8 | 476.06*267.8 | LVDS | / | 30PIN | IPS |
