15″ HDMI Powered Industrial Flat Panel Display Monitor
Product Introduction
Ruixiang industrial monitors support OEM/ODM customization service.
Screen Customization
1. High-light screen: default with 400cd/m2, support customization up to 1500cd/m2.
2. Photosensitive head: support screen brightness automatically adjusts based on ambient light.
3. Screen viewing angle: default with 160°, but all perspectives 178° WVA can be customized.
4. Touch screen: support resistive touch screen, capacitive touch screen, IR touch screen, and non-touchscreen.
5. High-resolution screen: higher resolution than standard LCD screen can be customized.
6. Screen size: standard display size range is 7 inch to 21.5 inch, other size is available.
7. Others: explosion-proof, anti-glare, dust-proof, water-proof, electromagnetic screen.
Other Customization Items
1. Appearance customization: support appearance and product color design, sample customization.
2. Working temperature: standard temp is -20~+70°C, support wide working temp: -30~+80°C.
3. LOGO customization.
4. System software: compatible with all software requirements.
5. I/O ports customization: support adding more ports according to your demands.
6. Wide voltage: 12V-24V.
7. Special materials: the monitors are made from aluminum alloy by default, other materials are available.
8. IP protection rating: front IP65 protection level by default, full-sealed dust-proof, and waterproof can be customized.
9. Installation methods: support different installation methods for different applications.
Ruixiang industrial Monitors are widely used in the following fields:
1. Industrial field control display;
2. Embedded in various devices as display devices;
3. As a display device in the host of telecommunications and network rooms;
4. Monitors for trains, subway stations, and ports;
5. Vehicle-mounted displays on train, subway, car;
6. Rugged or military standard displays are generally used in harsh outdoor environments, military vehicles, and warships;
7. Embedded into the advertising machine, which is widely applied to elevators, public places, and commercial office buildings of living quarters.
- PRODUCT PARAMETERS：
| Screen parameters | Screen size | 15 inch |
| Model | RXI-015-01 | |
| Resolution | 1024*768 | |
| Proportion | 4:3 square screen | |
| Response time | 5ms | |
| Panel Type | Industrial LCD panel A+ grade | |
| Active Area (mm) | 305.8*229.8mm | |
| Contrast | 1000:1 | |
| MTBF (LCD) | 70000Hr. | |
| Display colors | 16.7M(8-bit) | |
| Visual angle | 88/88/88/88 | |
| Luminance | 500 Nits | |
| Touch-type | Resistive / capacitive / mouse control | |
| Number of touches | ≥ 50 million times | |
| Other parameters | Power Supply | 4A External Power Adapter |
| Power Performance | 100-240V, 50-60HZ | |
| Input voltage | 12-24V | |
| Anti-static | Contact 4KV-air 8KV (≥16KV can be customized) | |
| Power | ≤48W | |
| Anti-vibration | GB2423 standard | |
| Anti-interference | EMC | EMI anti-electromagnetic interference | |
| Dustproof and waterproof | Front IP65 dustproof and waterproof | |
| Housing Material | Black/Silver, Aluminum Alloy | |
| Installation method | Embedded, desktop, wall-mounted, VESA 75, VESA 100, panel mount, open frame. | |
| Operation Humidity / Storage Humidity | 10%-80% / 10%-90%, non-condensable | |
| Working temperature / Storage temperature | -20°C～70°C / -30°C～80°C | |
| Language menu | Chinese, English, German, French, Korean, Spanish, Italian, Russian, etc. | |

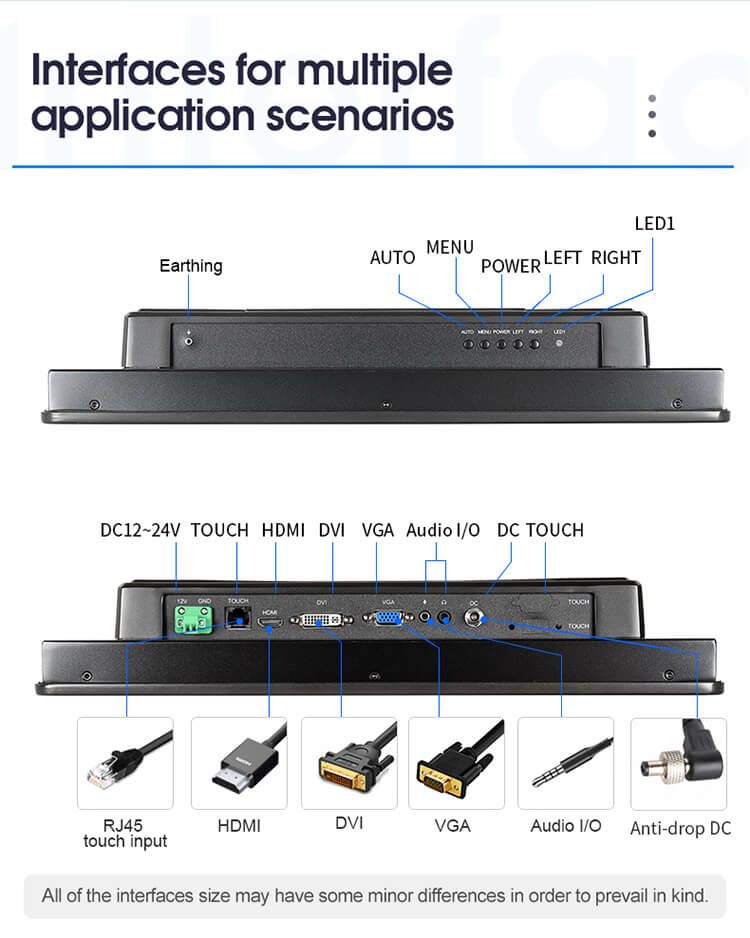

| I/O interface parameters | Signal Interface | DVI, HDMI, VGA |
| Power connector | DC with ring attachment (optional DC terminal block) | |
| Touch interface | USB | |
| Other interfaces | Audio input and output |
Our Services
Ruixiang provides customers with flexible customization services: customized screen FPC, screen IC, screen backlight, touch screen cover plate, sensor, touch screen FPC. For more details, please consult us, we will provide you with free project evaluation and project approval, and have a professional R & D personnel one-to-one project docking, welcome the demand of customers to find us!
