Industrial control system 5 inch LCD monitor screen Custom Capacitive Touch Screen Panel

Short Description:

 Stock Sample is Free & Available

Support small MOQ

We have two own factories in China. we are your best choice and your absolutely reliable business partner.

We provides customers with flexible customization services: customized screen FPC, screen IC, screen backlight, touch screen cover plate, sensor, touch screen FPC. For more details, please consult us, we will provide you with free project evaluation and project approval, and have a professional R & D personnel one-to-one project docking, welcome the demand of customers to find us!


  • Product Name: 5 inch capacitive touch screen
  • Structure: G+G
  • Part No.: RXC-GG050233A
  • TP OD: 70.5*133*2.0
  • TP VA: 62.2*110.2
  • Application Fields: industrial control, medical equipment, smart home, human-computer interaction, security, etc.
  • Product Detail

    Product Tags

    Product Introduction

    This is a custom-made 5-inch solid-screen capacitive screen panel, which has a hardness of up to 6H. In addition, it also has 5-point touch function. We have developed a variety of accessories specifically for this screen to meet the different needs of different customers.

    As an accessory, we have a very diverse range of products for this screen. For example, we provide different protective cases suitable for different scenarios, from simple style to waterproof series, etc., you can choose freely according to your actual needs. At the same time, we also provide different types of cables and adapters to provide faster and more efficient connection methods.

    Besides that, we also provide you with different screen protectors that can protect your screen from scratches, stains and other damages. Our screen protectors are made of environmentally friendly materials, and at the same time have super waterproof and oil-proof performance, so that your screen will always remain clear and transparent.

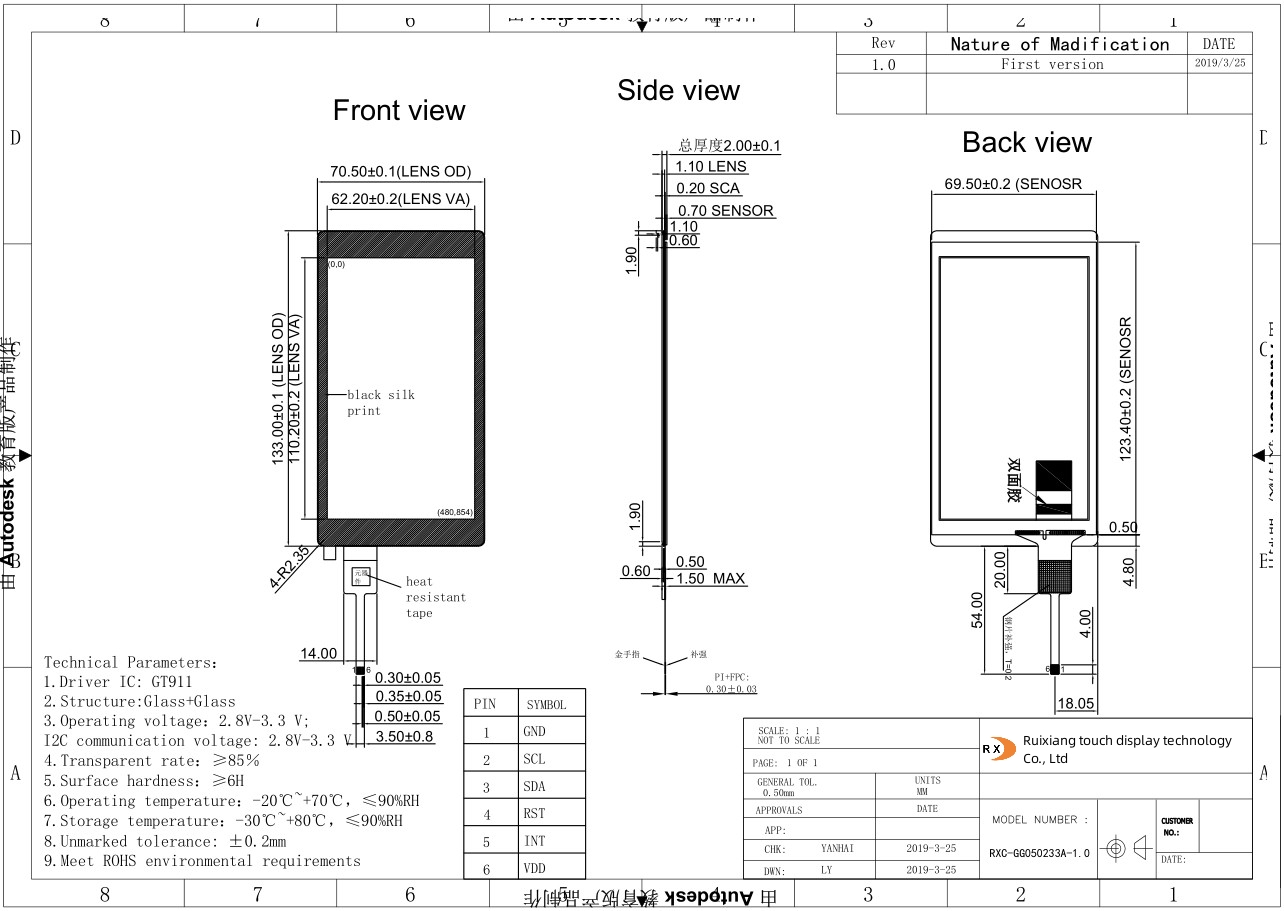

    1 pos touch screen

    Product Features

    Our 5-inch screen is actually a very flexible device, which can be used in many different scenarios, such as medical, industrial, military, security and so on. With continuous research and development and improvement, we will continue to improve our product performance and quality to meet the higher needs of customers.

    Finally, we would like to emphasize that our products are tailor-made, highly flexible and malleable. We are very happy to discuss more details about product features and customization requirements with different customers. Please feel free to contact us, let us work together to create better products.

    Product Specification

    logo1

    Ruixiang touch display technology Co., Ltd.

    Capacitive Touch Screen

    OEM/ODM customization is supported.
    The following are not all sizes. If the size you need is not in the list, please tell us the size you need.

    Size
    (inch)
    Part No. LENS O.D
    (mm)
    V.A
    (mm)
    SENSOR O.D
    (mm)
    Lens T
    (mm)
    Total T
    (mm)
    Interface IC
    2.4 RXC-GF024147A 42.72*60.26 37.92*50.26 42.22*59.76 0.55 0.8 I2C FT6236U Contact
    US
    RXC-GF024148A 48.7*63.2 37.32*59.76 42.22*59.76 0.55 1.01 I2C TBD
    RXC-PG024104A-1.0 50.6*45.5 50.9*45.8 50.9*45.8 0.25 1.08 I2C FT6236U
    2.8 RXC-GF028126A 49.8*68.7 44.2*58.6 49.6*65.64 0.55 0.8 I2C FT6236U
    RXC-GF028126A 48.5*69.3 43.2*57.2 49.6*65.64 0.7 0.95 I2C FT6236G
    3.5 RXC-GG035081A 54.66*82.94 48.96*73.44 54.26*82.54 0.55 1.3 I2C GT911
    RXC-PG03501-01 76.4*63.4 70.08*52.56 76.263.2 0.25 1.08 I2C FT5316
    RXC-GG03501F-1.0 76.6*63.6 70.08*52.56   0.7 1.6 I2C GT911
    4 RXC-GG040230A 67.05*104.62 52.84*87.4 59.2*96.55 0.7 1.45 I2C GT911 Contact
    US
    4.3 RXC-GG04305-01 105.14*66.5 96.04*54.86 104.74*65.3 0.55 1.45 I2C FT5336
    RXC-GG043061A 105.5*67.2 96.04*54.86 104.74*64.91 1.1 1.85 I2C GT911
    RXC-PG04302-02 104.8*64 96.14*54.76 104.6*63.8 0.25 1.08 I2C FT5316
    4.5 RXC-GG045128A 68*113.6 55.84*99.037 63.16*106.78 1.1 1.85 I2C GT911
    5 RXC-GG05004-01 143.76*96.35 109*65.7 120.3*75.4 0.7 1.6 I2C FT5316
    RXC-GG05023C 120.7*76.3 109*65.8 119.6*74.3 1.1 1.85 I2C GT911
    RXC-GG050158B 134*88 107.8*64.6 120.3*75.4 1.1 1.85 I2C GT911
    RXC-GG050233A 70.5*133 62.2*110.2 69.5*123.4 1.1 2 I2C GT911 Contact
    US
    RXC-PG05002-01 119.8*74.5 110.88*62.83 119.6*74.3 0.25 1.08 I2C FT5316
    RXC-PG05003-01 119.8*74.5 108*64.8 119.6*74.3 0.25 1.08 I2C FT5316
    5.6 RXC-GG056142A 126.5*100 113.9*85.67 125.5*95.01 0.7 1.6 I2C GT911
    6.8 RXC-GG068223A 180.1*110.8 152.61*84.32 164.3*99.4 0.7 1.6 COB
    7 RXC-GG07004-01 171.5*111 154.08*85.92 163.4*96.66 0.7 1.6 I2C GT911
    RXC-GG07032C 164.5*99.6 154.28*86.32 164.9*100 1.1 2 I2C FT5446
    RXC-GG070089A 176.7*111.7 154.88*86.72 163.9*99 0.7 1.45 I2C GT911
    RXC-GG070089D 164.9*100 155.08*86.92 163.9*99 0.7 1.6 I2C GT911 Contact
    US
    RXC-PG070089C 164.4*99.5 155.08*86.92 163.9*99 0.25 1.53 I2C GT911
    RXC-GG070122E 104.72*161.67 95*151.52 105.12*162.07 0.7 1.45 I2C GT911
    RXC-GG070136A 165.75*105.39 154.4*90.8 164.75*104.39 1.8 2.55 I2C FT5446
    RXC-PG07009-01 164.5*99.6 158.08*89.92 164.5*99.6 0.23 1.33 COB
    7.8 RXC-GG078241A 207.78*73.8 191.08*60.4 207.38*70.9 1.1 2 I2C GT911
    8 RXC-GG080093F 182.6*140.6 162.45*121.9 182.4*140.4 1.1 2 I2C GT911
    RXC-PG080093C 182*140 162*121.5 182.4*140.4 0.25 1.2 I2C GT911
    8.9 RXC-GG089141A 206.6*136.3 191.52*119.7 205.6*132.8 0.7 1.6 I2C FT5526
    9 RXC-GG090205A 219.93*127.92 195.62*113.16 215.43*126.92 0.7 1.6 I2C GT911 Contact
    US
    10.1 RXC-GG10036-01 234.5*142 222.72*125.28 233.9*141.4 1.1 2 I2C GT9271
    RXC-PG10105B 228.06*147.7 217.56*136.2 228.06*148.1 0.25 1.53 I2C GT9271
    RXC-GG101080A 252*155.5 223.72*126.28 235*143 0.7 1.45 I2C GT911
    RXC-GG101135A 257.06*170.2 218*136.64 228.46*150.14 0.7 1.45 I2C GT928
    RXC-GG101182A 247.3*165.9 218*136.6 227.7*148.45 0.7 1.45 USB ILI2511
    11.6 RXC-GG116091A 269*159.55 257.3*144.9 268.4*158.95 0.7 1.45 I2C FT5626
    RXC-GG116169A 269.62*158.76 257.32*145.18 270.02*159.16 1.1 2 USB ILI2511
    12.1 RXC-GG121144A 286.76*225.26 246.38*185.26 259.76*202.34 1.1 2 I2C GT9110
    RXC-GG121127A-1.0 294.67*245.36 245.76*184.32 255.92*199.21 1.1 2.5 I2C GT928 Contact
    US
    RXC-GG121228-1.0 301.12*213.1 262.13*164.13 286*187.1 1.1 1.85 I2C GT928
    12.3 RXC-GG123129A 318.2*140.2 291.63*109.11 317.2*139.2 1.1 2 I2C GT911
    13.3 RXC-GG133191C 305*178.09 295*166.6 178.69*305.6 1.1 2 USB ILI2511
    RXC-GG133201A 305*177.84 294.50*166 304.20*177.04 1.1 2 USB
    RXC-GG133208A 329.5*201 293.5*165 304.2*177.04 1.1 2 USB
    15.1 RXC-GG151253A 325.50*252.50 304.80*229.30 321.4*246.4 1.1 2 USB WDT875 2A
    21.5 RXC-GG215062A 511.8*309 477.84*269.31 491.8*289 1.1 2.4 USB ILI2511
    32 RXC-GG320094A 724.6*422.1 697.4*391.85 719.7*414.3 4 5.3 USB ILI2312 M
